FEATURES
-
Dual SIM with automatic failover for uninterrupted internet.
-
4G LTE Cat4 connectivity with speeds up to 150 Mbps.
-
Wi-Fi hotspot supporting up to ~100 devices.
-
Automatic WAN failover to switch between Ethernet and mobile internet.
-
Industrial design suitable for harsh environments (−40 °C to 75 °C).
DOWNLOAD
Datasheet_RUT951_1.40
Specifications
| Category | Specification |
|---|---|

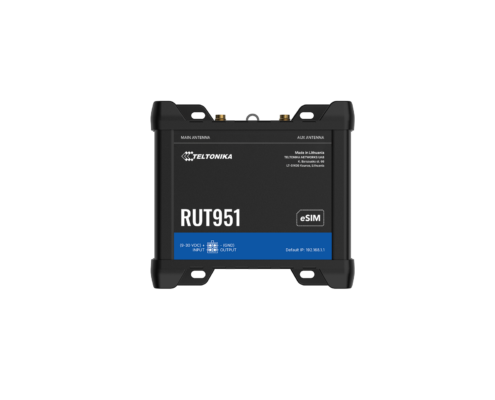

| Product Type | Industrial Cellular Router |
| Cellular Technology | 4G LTE Cat 4 / 3G / 2G |
| Max Speed | 150 Mbps download / 50 Mbps upload |
| SIM Slots | 2 × Mini SIM (Dual SIM with auto failover) |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz hotspot |

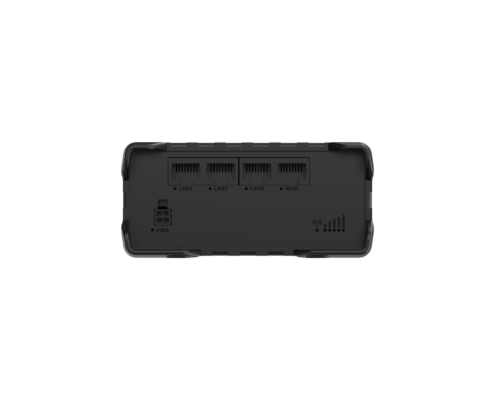

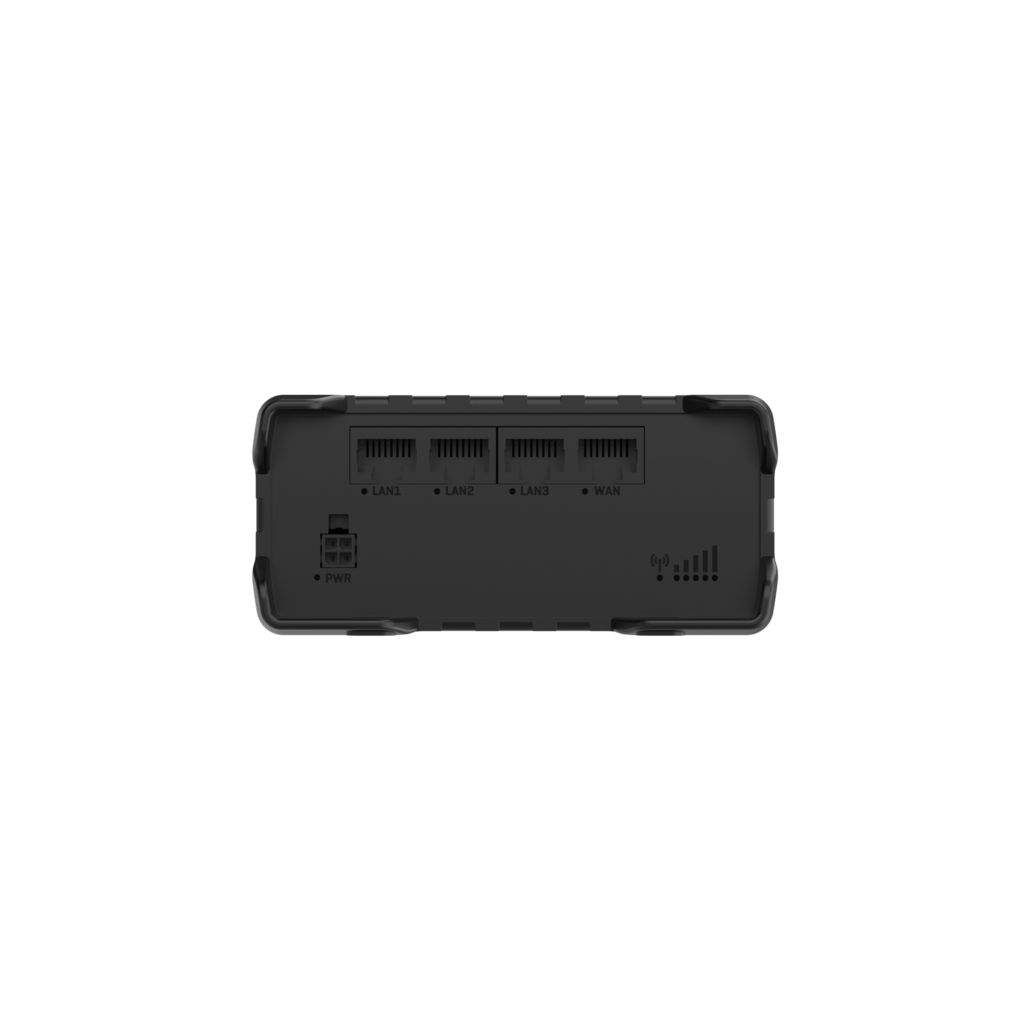

| Ethernet Ports | 4 × RJ45 (10/100 Mbps) |
| WAN | 1 configurable WAN port |
| CPU | MediaTek MIPS 24KEc, 580 MHz |
| RAM | 128 MB DDR2 |
| Flash Storage | 16 MB |
| Operating System | RutOS (Linux / OpenWrt-based) |
| VPN Support | OpenVPN, IPsec, WireGuard, PPTP, L2TP |
| IoT Protocols | MQTT, SNMP, Modbus |
| Digital I/O | 1 Digital Input, 1 Digital Output |

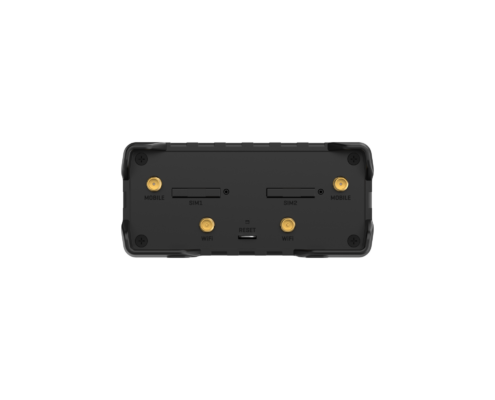

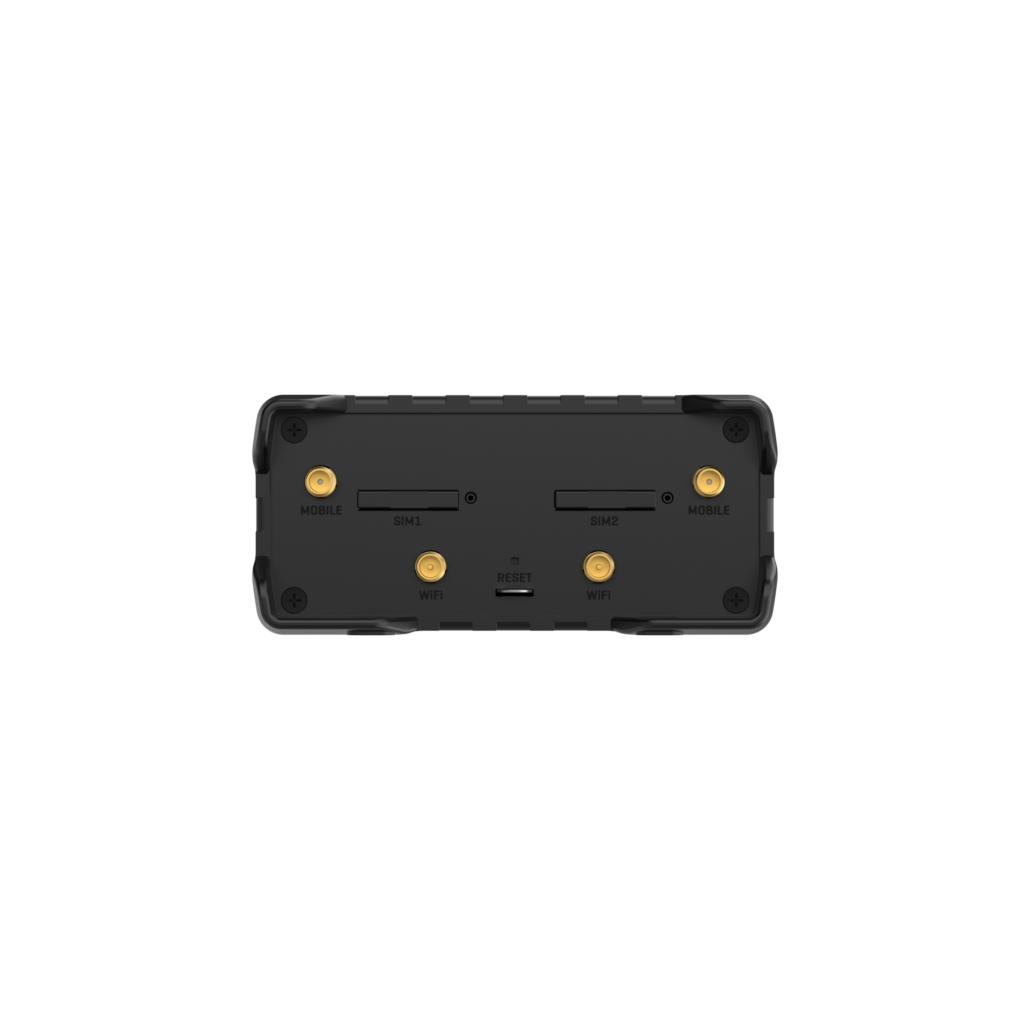

| Antennas | 2 × LTE SMA, 2 × Wi-Fi RP-SMA |
| Remote Management | RMS (Remote Management System) |
| Power Input | 9 – 30 V DC |
| Max Power Consumption | ~7 W |
| Operating Temperature | −40 °C to +75 °C |
| Housing | Aluminium industrial casing |
| Protection | IP30 |
| Dimensions | 110 × 50 × 100 mm |
| Mounting | DIN Rail / Wall / Desktop |
