FEATURES
- PoE+ router – other devices (IP cameras, access points) power.
- Dual-SIM auto failover – network fail SIM or switch.
- 4G LTE Cat4 connectivity remote locations reliable internet.
- Wi-Fi hotspot – multiple devices connect.
- Industrial design (-40°C ते +75°C) harsh environment suitable
DOWNLOAD
Datasheet_RUT951 PoE+_1.06
Specifications
| Category | Specification |
|---|---|

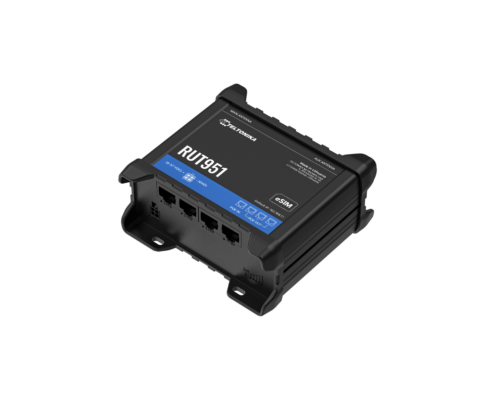

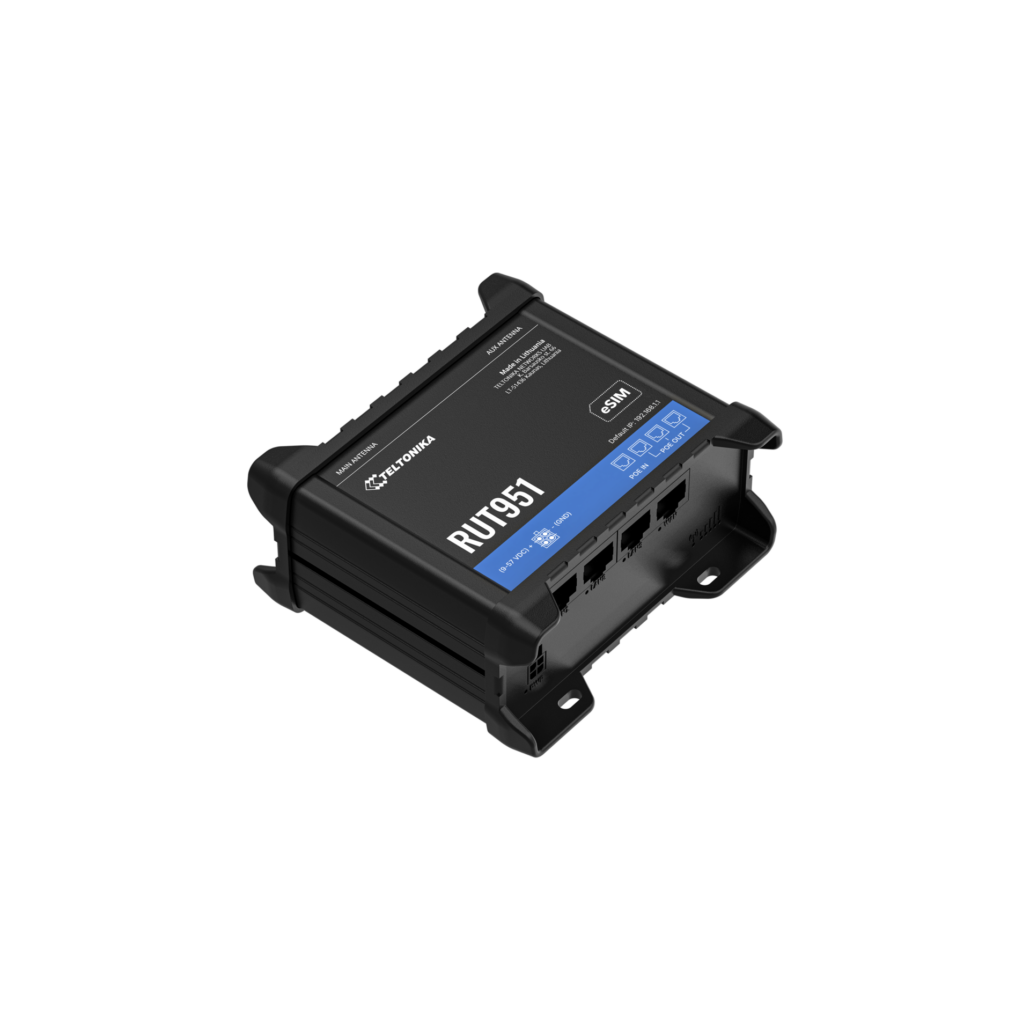

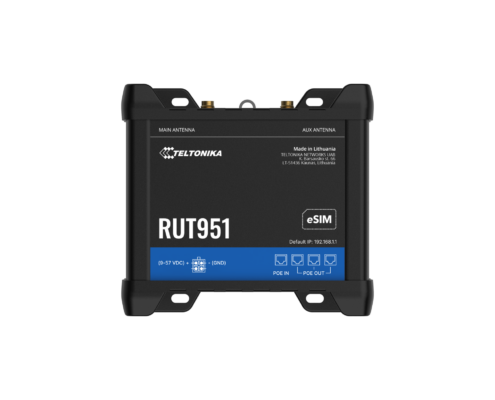

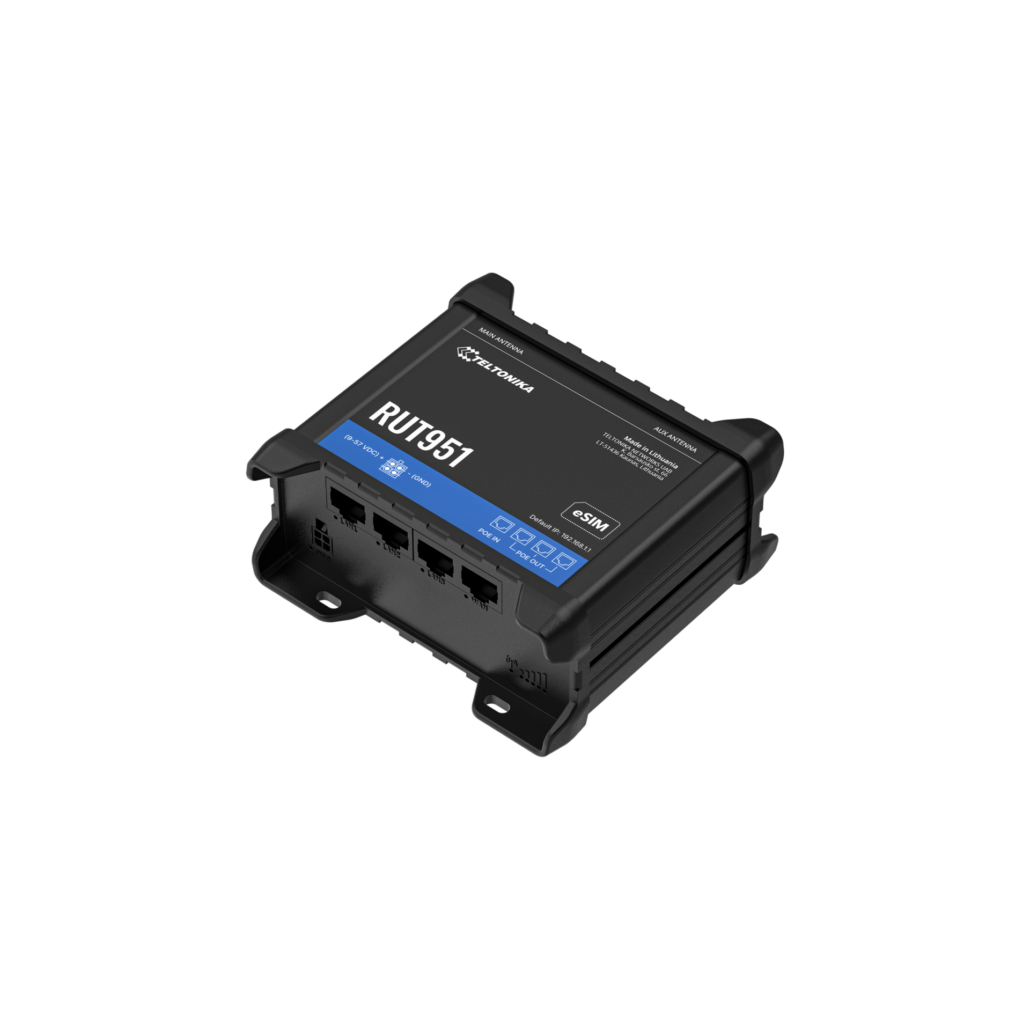

| Product Type | Industrial 4G LTE PoE+ Cellular Router |
| Cellular Network | 4G LTE Cat 4 / 3G / 2G |
| Max Speed | 150 Mbps Download / 50 Mbps Upload |
| SIM Support | Dual SIM (2 × Mini SIM) |
| eSIM | Optional (up to 7 profiles) |
| Wi-Fi | 802.11 b/g/n (Wi-Fi 4) Access Point |

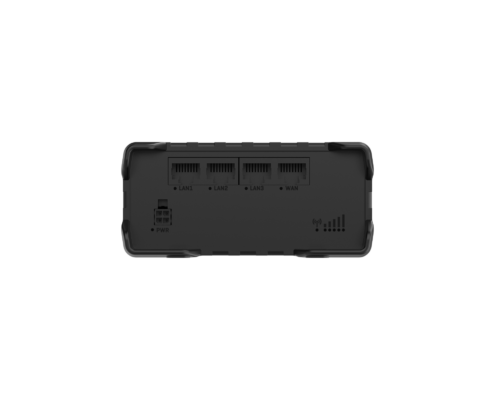

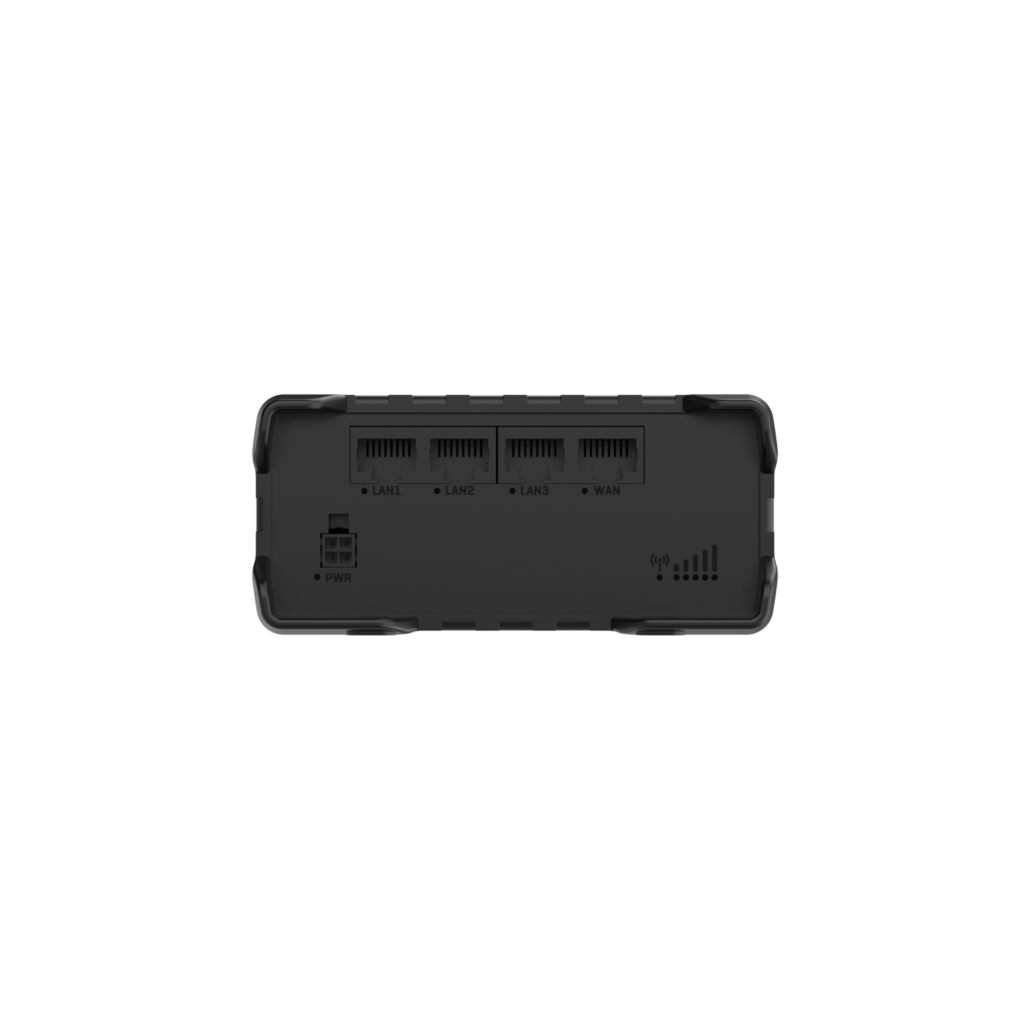

| Ethernet Ports | 4 × RJ45 (10/100 Mbps) |
| PoE-IN | 1 port (LAN1) IEEE 802.3af/at |
| PoE-OUT | 3 ports (LAN2, LAN3, WAN) |
| PoE Power Budget | Up to 90 W total |
| Max PoE per Port | 30 W |
| CPU | Industrial embedded processor |
| Operating System | RutOS (Linux-based) |
| VPN | OpenVPN, IPsec, WireGuard, GRE, L2TP, PPTP |
| Industrial Protocols | Modbus TCP, MQTT, SNMP |
| Failover | Dual-SIM auto switching, WAN failover |
| SMS Functions | SMS to HTTP / Email / Auto-reply |
| I/O | 1 Digital Input, 1 Digital Output |

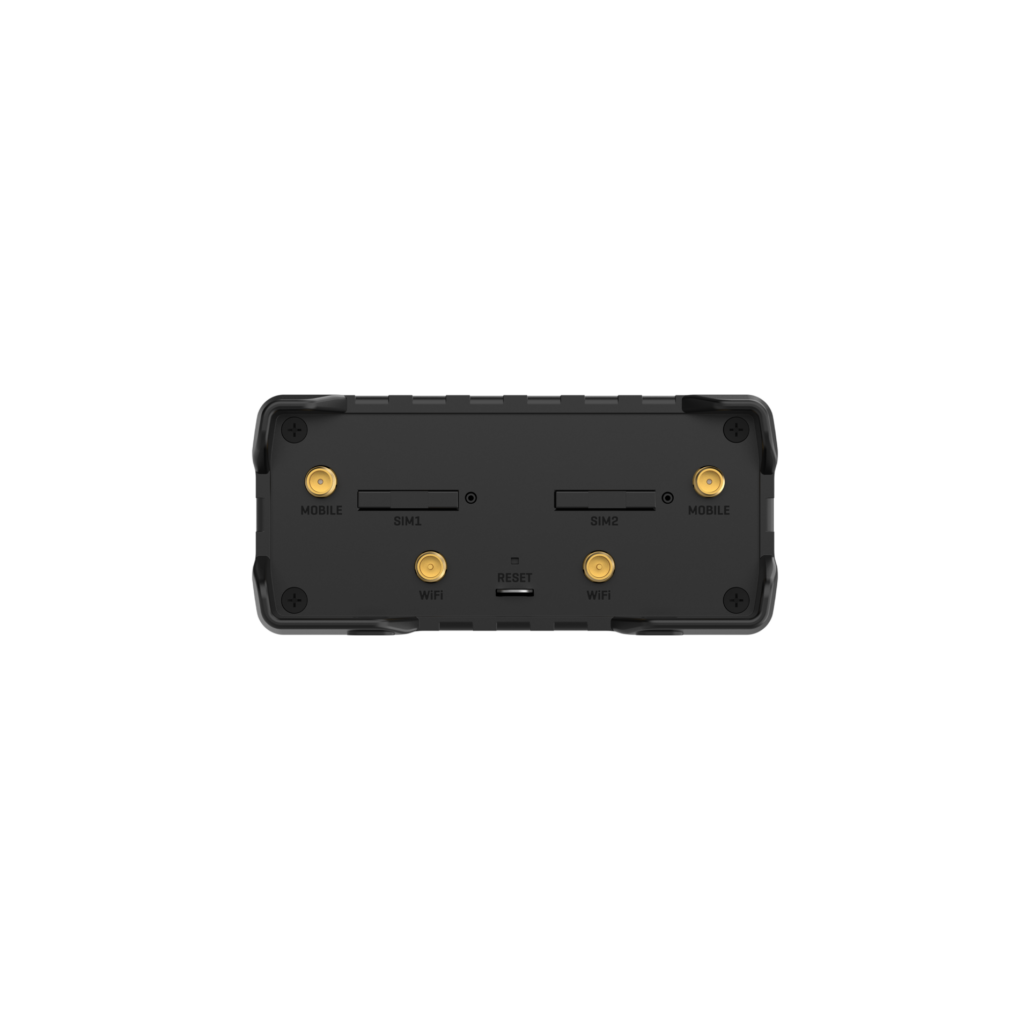

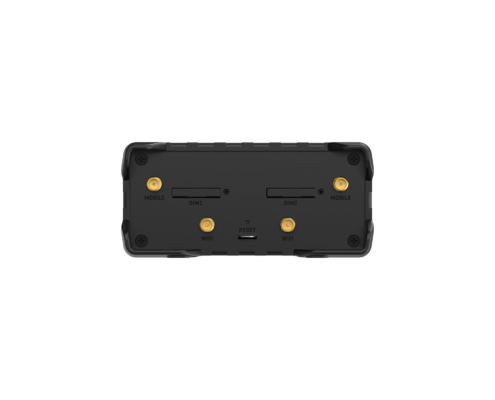

| Antenna | 2 × LTE SMA, 2 × Wi-Fi RP-SMA |
| Power Input | 9 – 57 V DC |
| Power Consumption | Idle <5 W / Max <6.5 W |
| Operating Temperature | -40 °C to +75 °C |
| Housing | Aluminium Industrial Case |
| Protection | IP30 |
| Dimensions | 110 × 50 × 100 mm |
| Weight | ~287 g |
| Mounting | DIN Rail / Wall / Flat surface |
