FEATURES
-
4G LTE Cat 4 + 3G/2G fallback
-
Dual SIM + eSIM support (auto failover)
-
Wi-Fi 4 (802.11n) – AP & Client mode
-
GNSS (GPS, GLONASS, Galileo, BeiDou)
-
Industrial I/O ports (DI/DO)
-
Advanced routing (BGP, OSPF, VPN, Firewall)
-
RMS Remote Management
-
Industrial design (-40°C to +65°C)
DOWNLOAD
Datasheet_RUT981_1.01
Specifications
| Category | Specification |
|---|---|
| Cellular | 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G |
| SIM | 2 × SIM + eSIM (up to 7 profiles) |
| Failover | Dual SIM + WAN failover & load balancing |
| Wi-Fi | 802.11 b/g/n (Wi-Fi 4), 2×2 MIMO |

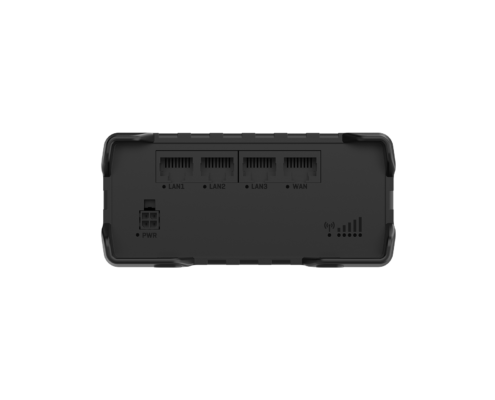

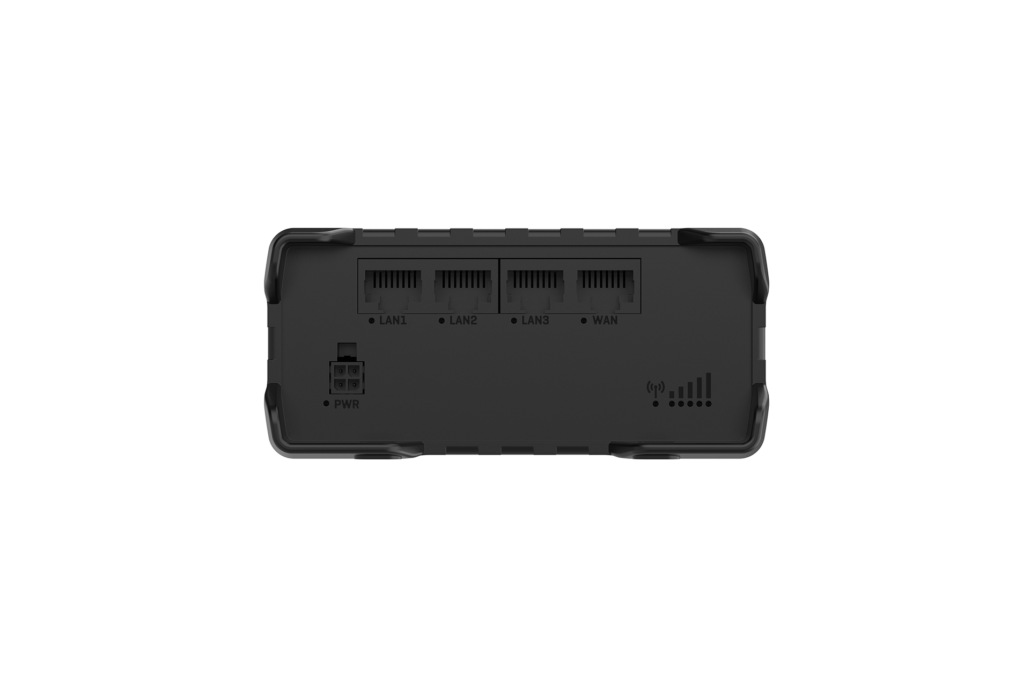

| Ethernet | 4 × RJ45 (1 WAN + 3 LAN, 10/100 Mbps) |
| GNSS (GPS) | GPS, GLONASS, Galileo, BeiDou |
| CPU | Mediatek 580 MHz (MIPS) |
| RAM / Flash | 128 MB RAM / 32 MB Flash |
| OS | RutOS (Linux / OpenWrt based) |
| Interfaces | 1 × Digital Input, 1 × Digital Output |
| Protocols | MQTT, Modbus, SNMP, TR-069, OPC UA |
| VPN & Security | Firewall, VPN (IPsec, OpenVPN, etc.) |
| Power Input | 9–30 V DC, Passive PoE support |
| Power Consumption | Idle ~1.2W, Max ~4.3W |

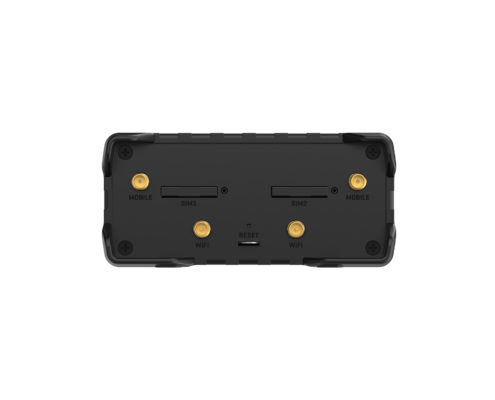

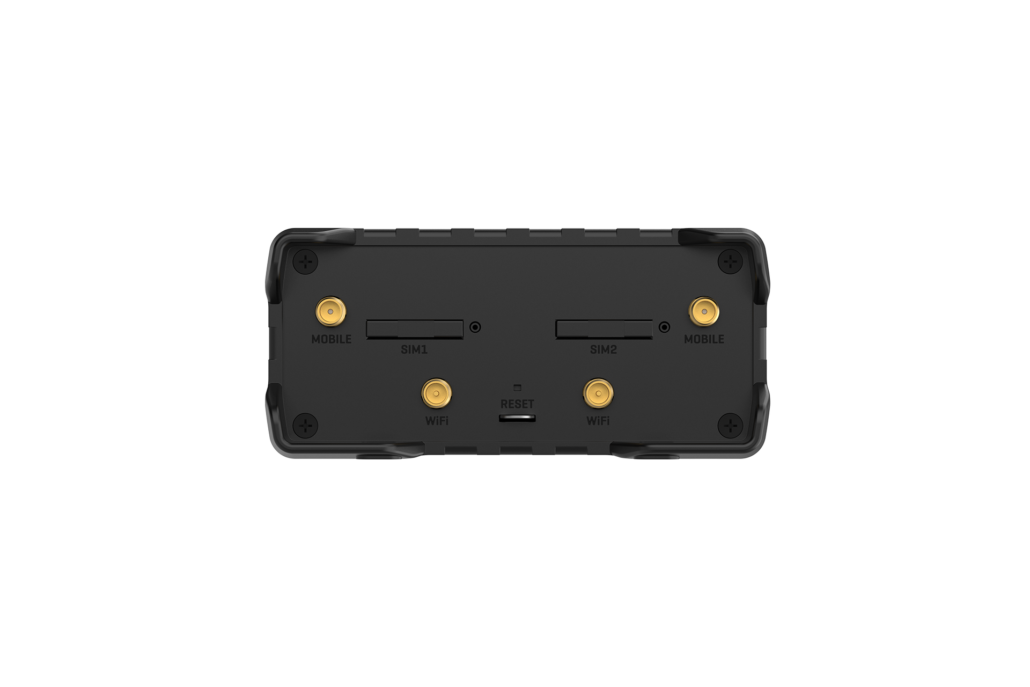

| Antennas | 2 × LTE (SMA), 2 × Wi-Fi (RP-SMA) |
| Dimensions | 110 × 50 × 100 mm |
| Weight | ~268 g |
| Operating Temp | -40°C to +65°C |
| Protection | IP30 Industrial grade |
