FEATURES
-
4G LTE Cat 4 + 3G/2G fallback
-
Dual SIM + eSIM support (auto failover)
-
Wi-Fi 4 (802.11 b/g/n) – AP & Client mode
-
GNSS (GPS, GLONASS, Galileo, BeiDou)
-
RS232 & RS485 serial ports (Modbus / industrial use)
-
Multiple Digital Inputs/Outputs + Relay
-
Advanced VPN, Firewall, RMS support
-
Industrial design (-40°C to +75°C)
DOWNLOAD
Datasheet_RUT956_1.31
Specifications
| Category | Specification |
|---|---|
| Cellular | 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G |
| SIM | Dual SIM (2FF) + optional eSIM |
| Failover | Auto SIM switching + WAN backup |
| Wi-Fi | 802.11 b/g/n (Wi-Fi 4), AP & Client mode |

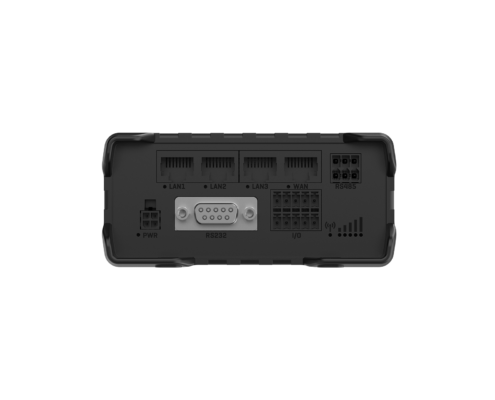

| Ethernet | 4 × RJ45 (10/100 Mbps) |
| GNSS (GPS) | GPS, GLONASS, Galileo, BeiDou, QZSS |
| CPU / OS | RutOS (Linux/OpenWrt based) |

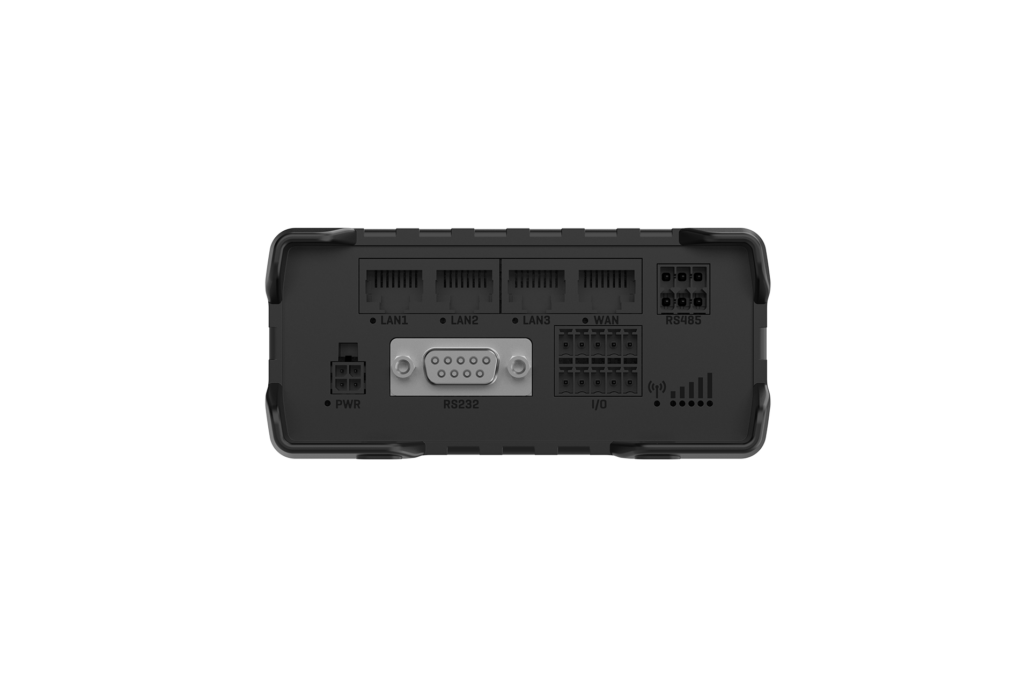

| Interfaces | RS232 (DB9), RS485, USB 2.0 |
| I/O Ports | Digital inputs, analog input, relay output |
| Protocols | MQTT, Modbus, SNMP, SMS control |
| Storage | MicroSD (up to 2TB) |
| VPN & Security | OpenVPN, IPsec, Firewall |
| Power Input | 9–30 V DC, Passive PoE support |
| Power Consumption | <2W idle, <7W max |

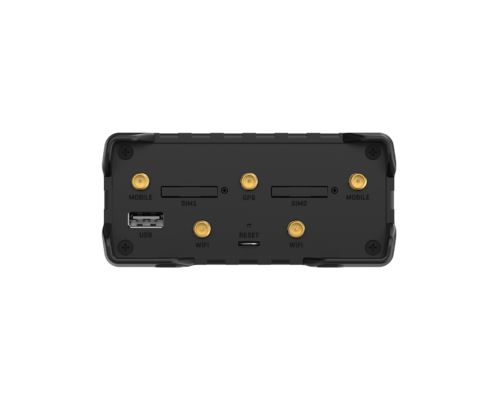

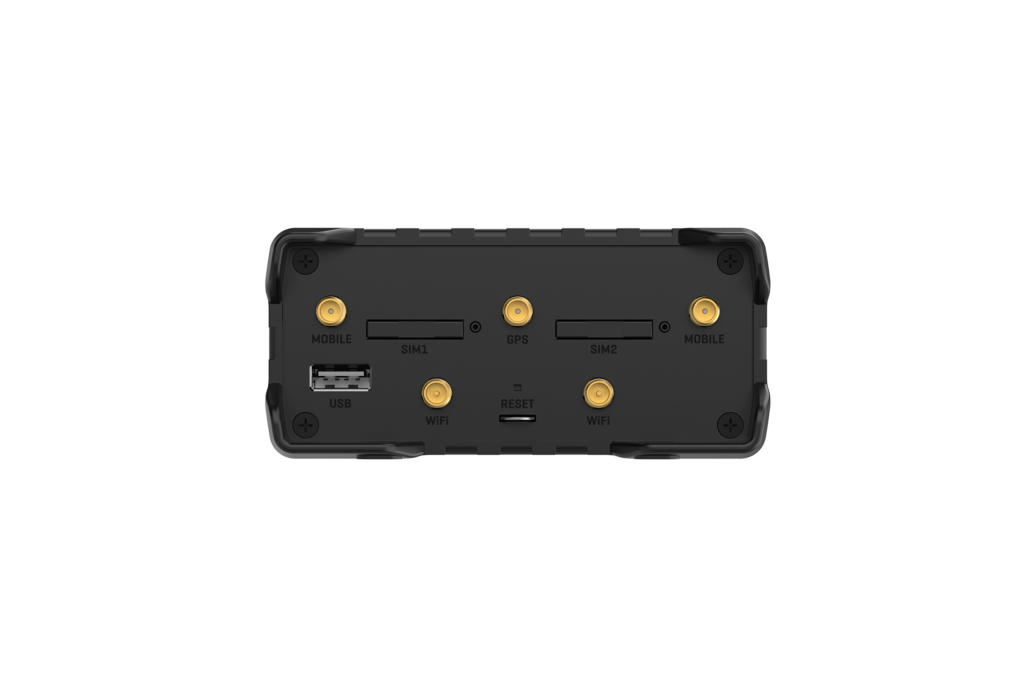

| Antennas | 2 × LTE, 2 × Wi-Fi, 1 × GNSS |
| Dimensions | 110 × 50 × 100 mm |
| Weight | ~287 g |
| Operating Temp | -40°C to +75°C |
| Protection | IP30 Industrial grade |
