FEATURES
-
4G LTE Cat 4 + 3G/2G fallback
-
Dual SIM + eSIM (up to 7 profiles) with auto failover
-
Wi-Fi 6 (802.11ax) dual-band high speed
-
Powerful CPU (1.3 GHz dual-core) + 1 GB RAM for edge computing
-
Docker support (run applications inside router)
-

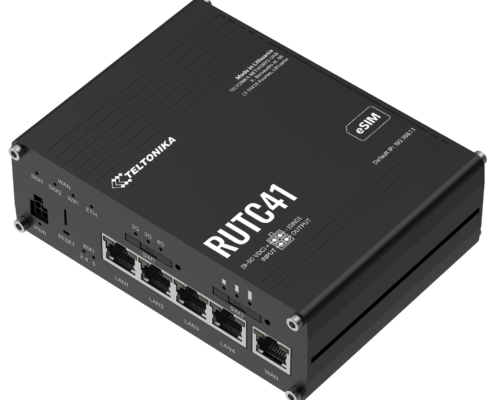

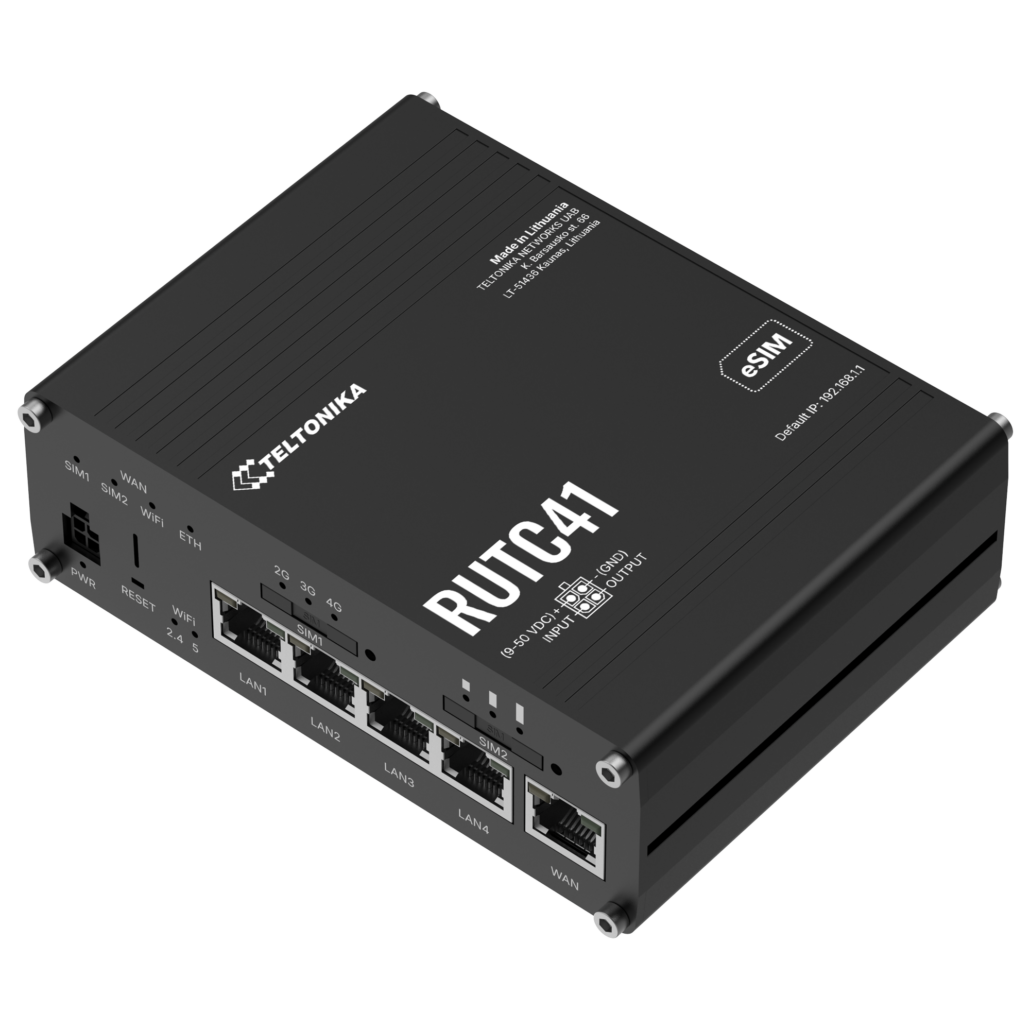

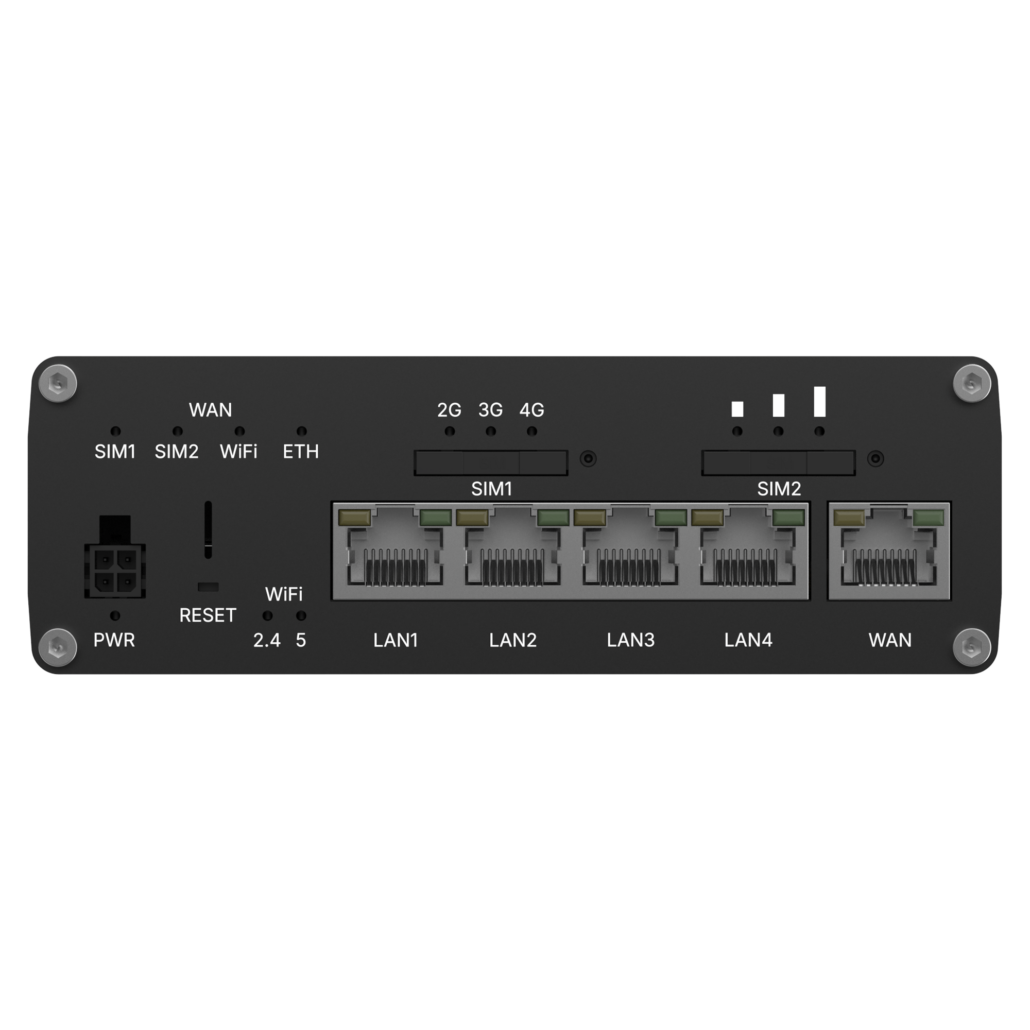

5 × Gigabit Ethernet ports (1 WAN + 4 LAN)
-
Industrial I/O (Digital Input/Output)
-
RMS Remote Management + Advanced VPN & Firewall
-

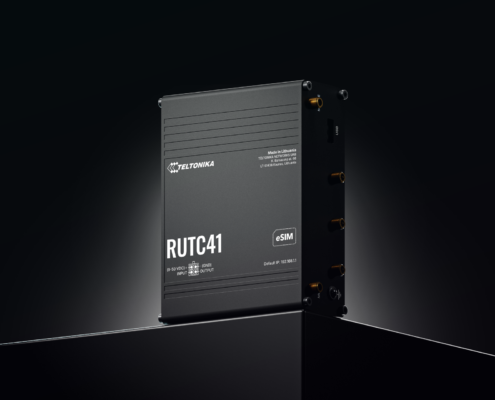

Industrial design (-40°C to +75°C
DOWNLOAD
Datasheet_RUTC41_1.02
Specifications
| Category | Specification |
|---|---|
| Cellular | 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G |
| SIM | Dual SIM + eSIM (up to 7 profiles) |
| Failover | Auto SIM switching + WAN failover |
| Wi-Fi | Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz + 5 GHz) |
| Wi-Fi Speed | Up to 2402 Mbps (5 GHz) + 576 Mbps (2.4 GHz) |

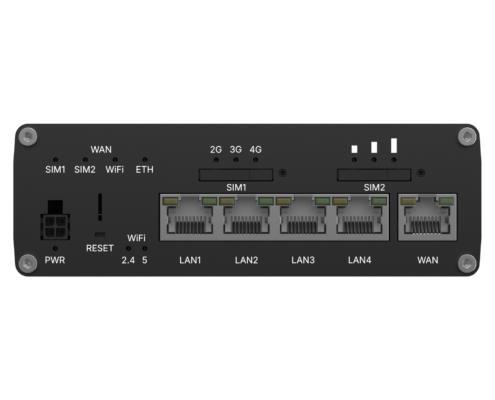

| Ethernet | 5 × Gigabit RJ45 (1 WAN + 4 LAN) |
| CPU | Dual-core ARM Cortex-A53, 1.3 GHz |
| RAM / Storage | 1 GB RAM / 8 GB Flash |
| OS | RutOS (Linux / OpenWrt based) |
| Interfaces | 1 × Digital Input, 1 × Digital Output |
| USB | 1 × USB 2.0 |
| Protocols | MQTT, Modbus, BACnet, OPC UA, SNMP |
| VPN & Security | OpenVPN, IPsec, WireGuard, Firewall |
| Power Input | 9–50 V DC, Passive PoE |
| Power Consumption | ~5.5W typical, max ~13.5W |

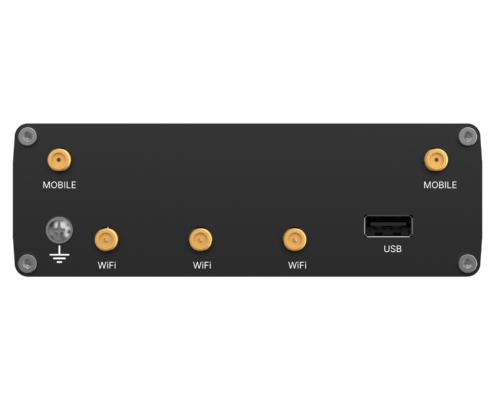

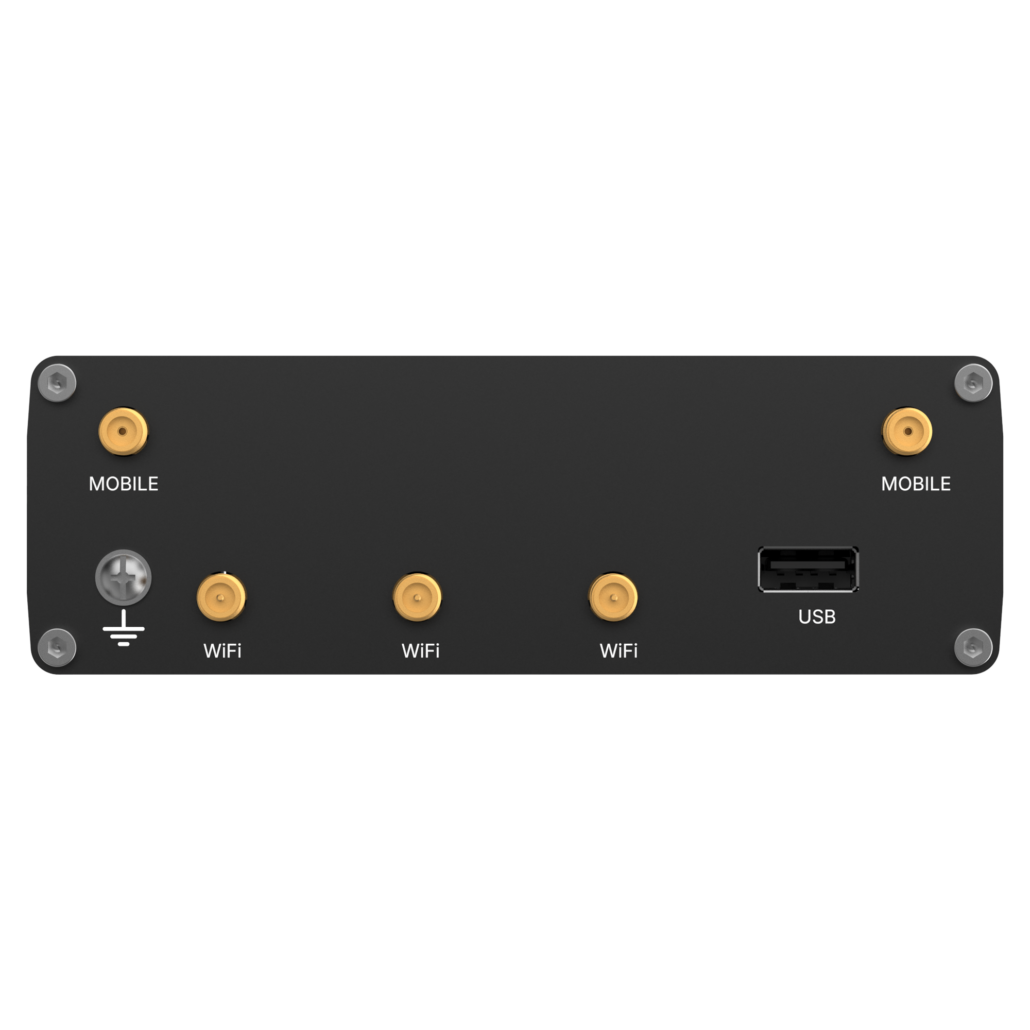

| Antennas | 2 × LTE, 3 × Wi-Fi |
| Dimensions | ~130 × 104 × 42.6 mm |
| Weight | ~480 g |
| Operating Temp | -40°C to +75°C |
| Protection | IP30 Industrial aluminum корпус |
