FEATURES
-
4G LTE Cat 4 (Global connectivity)
-
Dual SIM + eSIM (auto failover)
-
Wi-Fi support (AP & Client mode)
-
GNSS (GPS, GLONASS, Galileo, BeiDou)
-
RS232 + RS485 (industrial communication)
-
Multiple Digital I/O + Relay + Analog input
-
Supports industrial protocols (Modbus, OPC UA, DNP3)
-
RMS Remote Management + Zero-touch deployment
-
Designed for harsh industrial environments
DOWNLOAD
Datasheet_RUT986_1.00
Specifications
| Category | Specification |
|---|---|
| Cellular | 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G |
| SIM | Dual SIM (2FF) + eSIM (multi-profile) |
| Failover | Auto SIM switching + WAN failover |
| Wi-Fi | 802.11 b/g/n (Wi-Fi 4), AP & Client mode |

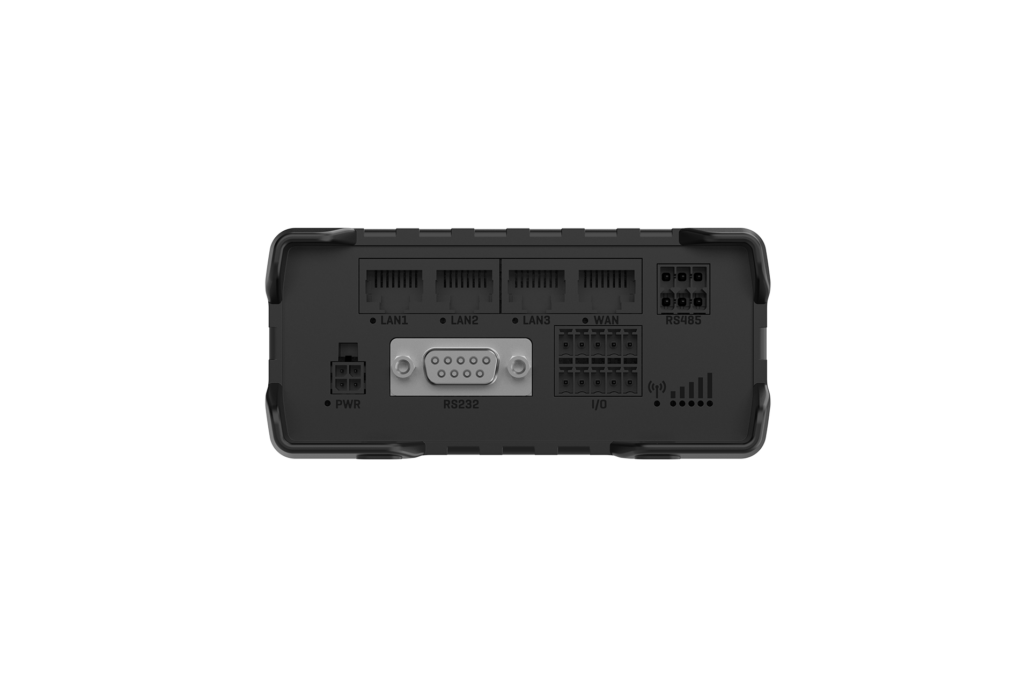

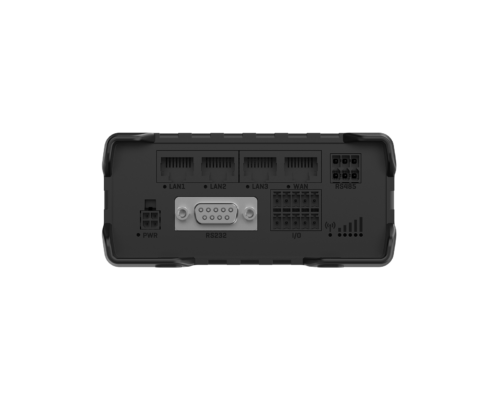

| Ethernet | 4 × RJ45 (10/100 Mbps) |
| GNSS (GPS) | GPS, GLONASS, Galileo, BeiDou |
| CPU / OS | RutOS (Linux / OpenWrt based) |
| Interfaces | RS232 (DB9), RS485, USB 2.0 |
| I/O Ports | Digital inputs/outputs, relay, analog input |
| Protocols | MQTT, Modbus, DNP3, OPC UA |
| Storage | MicroSD (up to 2TB) |
| VPN & Security | OpenVPN, IPsec, Firewall |
| Power Input | 9–30 V DC, Passive PoE |
| Power Consumption | ~2W idle, up to ~9W max |

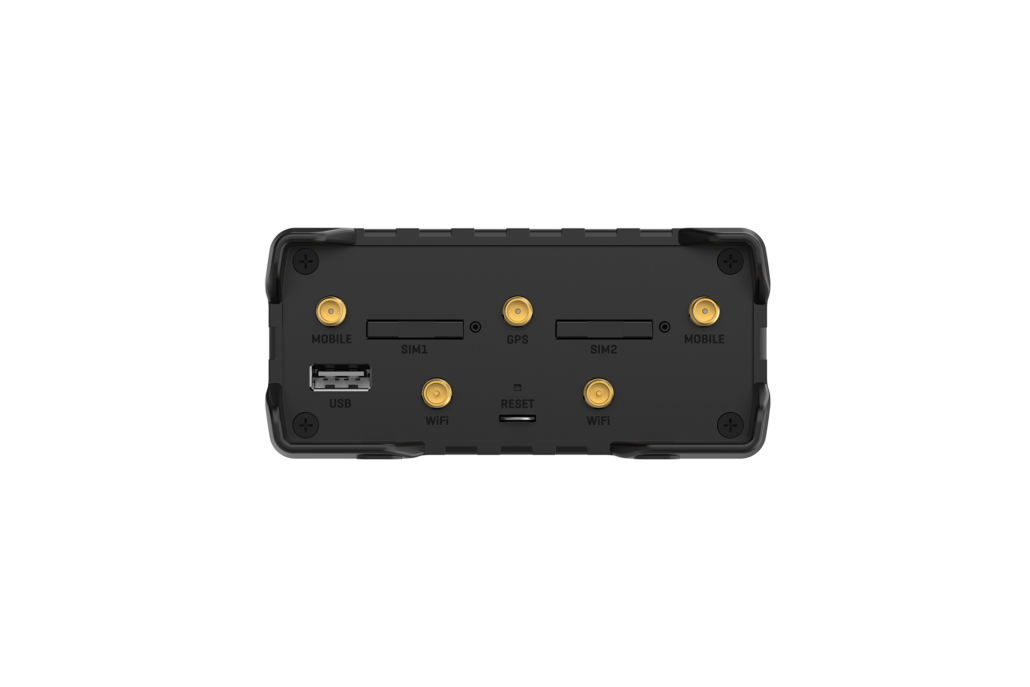

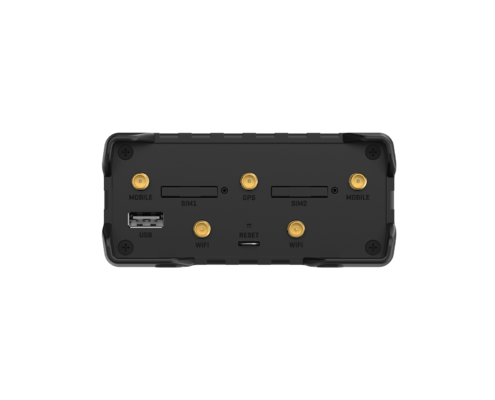

| Antennas | 2 × LTE, 2 × Wi-Fi, 1 × GNSS |
| Dimensions | ~110 × 50 × 100 mm |
| Operating Temp | Industrial grade (harsh environments) |
| Protection | IP30 aluminum housing |
