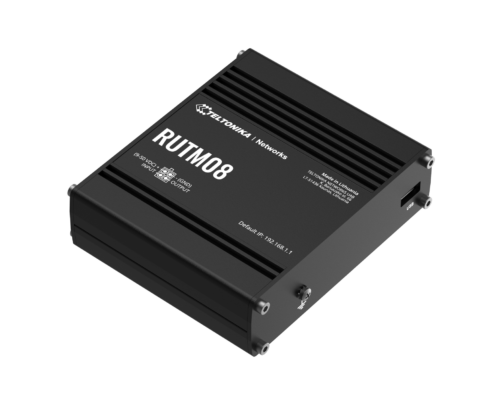

FEATURES
-
Wired industrial router (No SIM / No Wi-Fi)
-

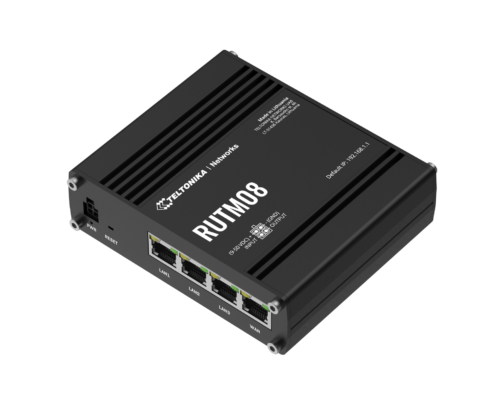

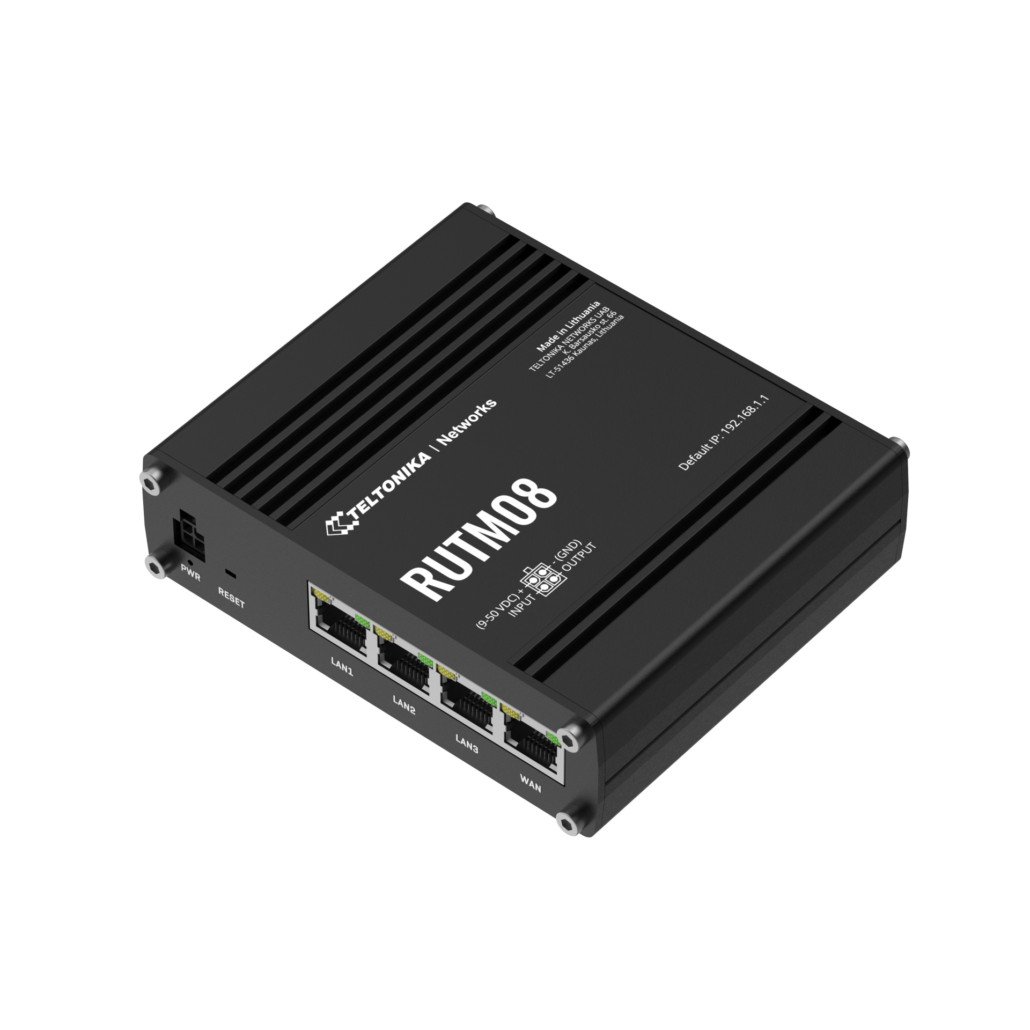

4 × Gigabit Ethernet ports (1 WAN + 3 LAN)
-
Supports up to 128 VLANs (advanced networking)
-
Advanced routing protocols (BGP, OSPF, RIP, etc.)
-
Multiple VPN support (OpenVPN, IPsec, WireGuard, ZeroTier)
-
Industrial protocols (MQTT, Modbus, DNP3, DLMS)
-
RMS remote management support
-
High reliability for industrial LAN networks
DOWNLOAD
rutm08-datasheet-v121
Specifications
| Category | Specification |
|---|---|
| Type | Industrial Wired Router (Ethernet only) |
| Cellular | Not supported (No SIM) |
| Wi-Fi | Not supported |

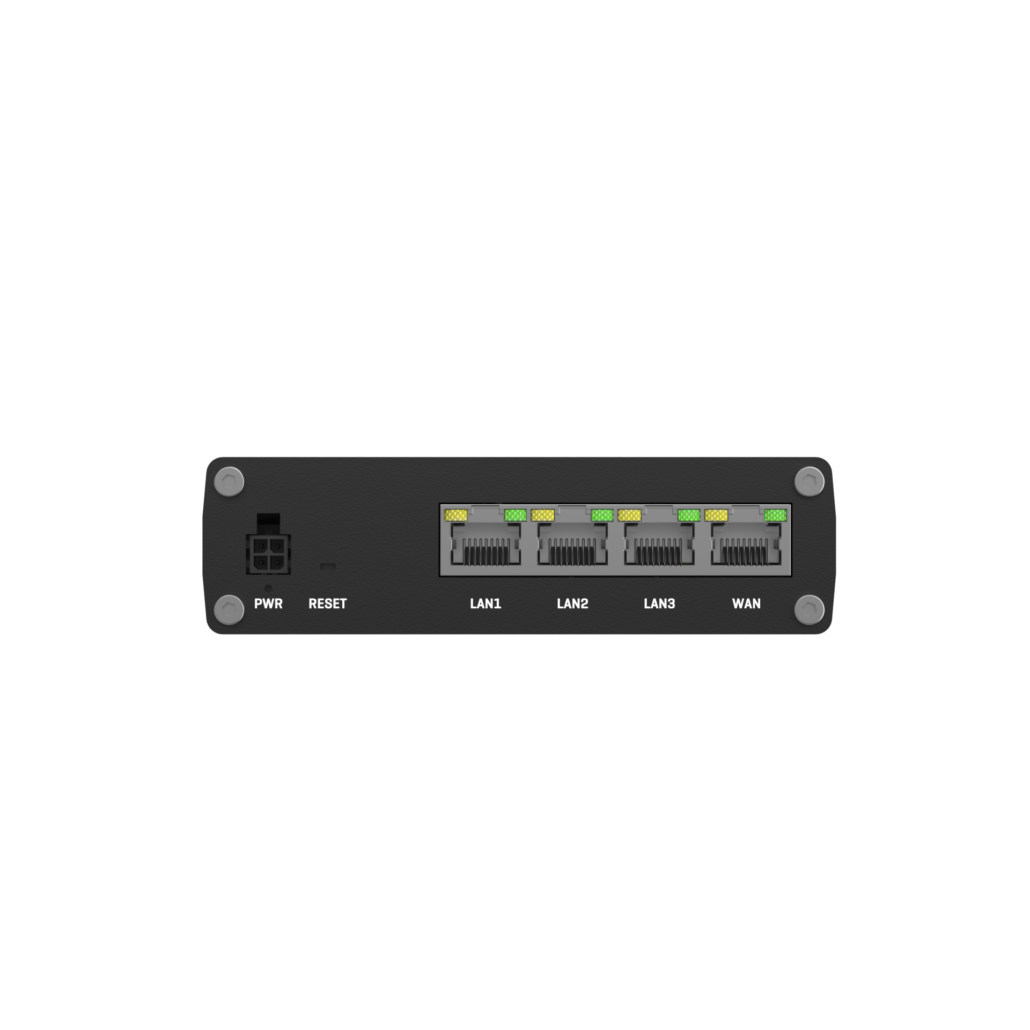

| Ethernet Ports | 4 × Gigabit RJ45 (1 WAN + 3 LAN) |
| VLAN Support | Up to 128 VLANs |
| Routing | Static + Dynamic (BGP, OSPF, RIP, EIGRP) |
| Protocols | TCP/IP, IPv4/IPv6, SNMP, MQTT, DHCP, DNS, etc. |
| VPN | OpenVPN, IPsec, WireGuard, ZeroTier, GRE, PPTP |
| Firewall | Port forwarding, traffic rules, security policies |
| CPU | Dual-core 880 MHz (MediaTek) |
| RAM / Storage | 256 MB RAM / 256 MB Flash |
| OS | RutOS (Linux / OpenWrt based) |

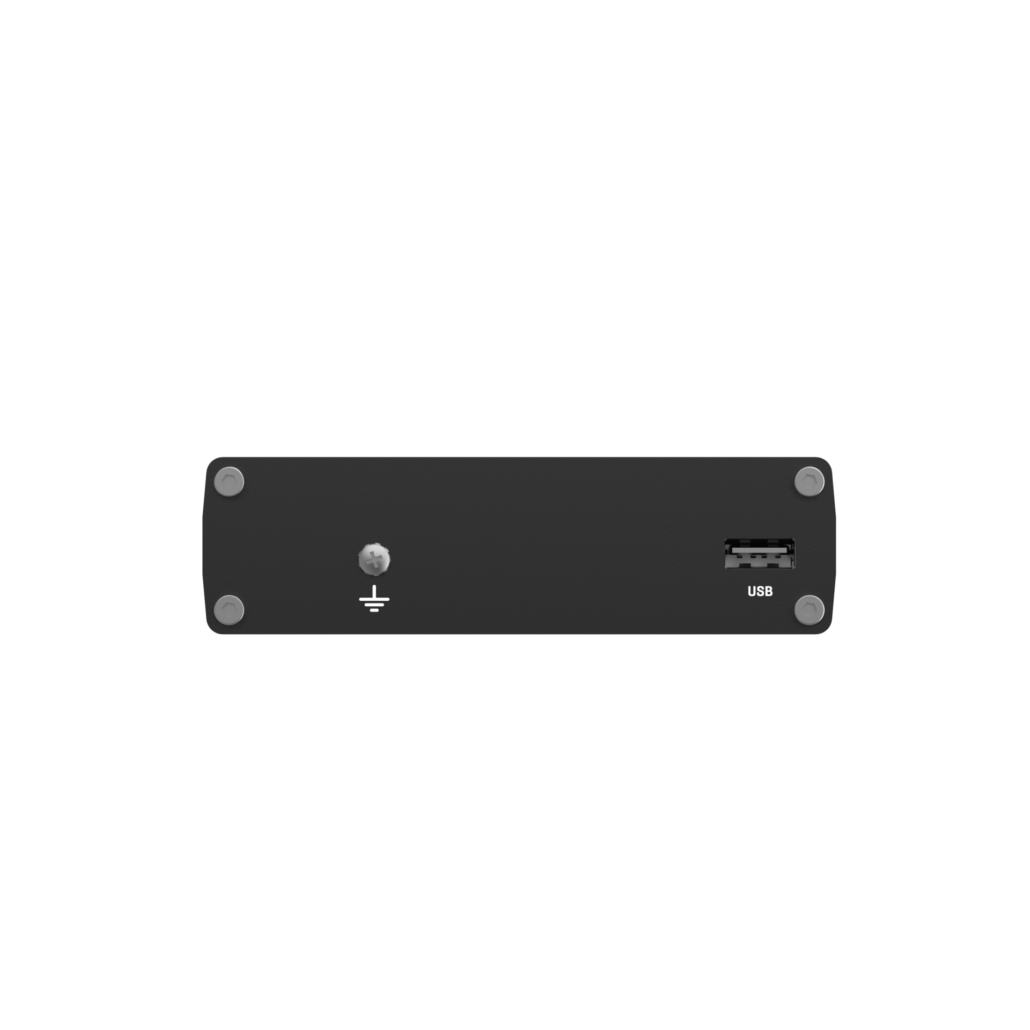

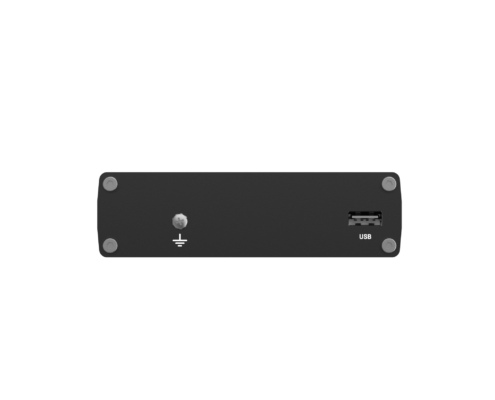

| USB | 1 × USB 2.0 |
| I/O Ports | 1 × Digital Input, 1 × Digital Output |
| Power Input | 9–50 V DC, PoE support |
| Power Consumption | ~5.5W max |
| Dimensions | ~115 × 32 × 95 mm |
| Weight | ~353 g |
| Operating Temp | -40°C to +75°C |
| Mounting | DIN rail / wall / desktop |
| Protection | Industrial grade (fanless design) |
